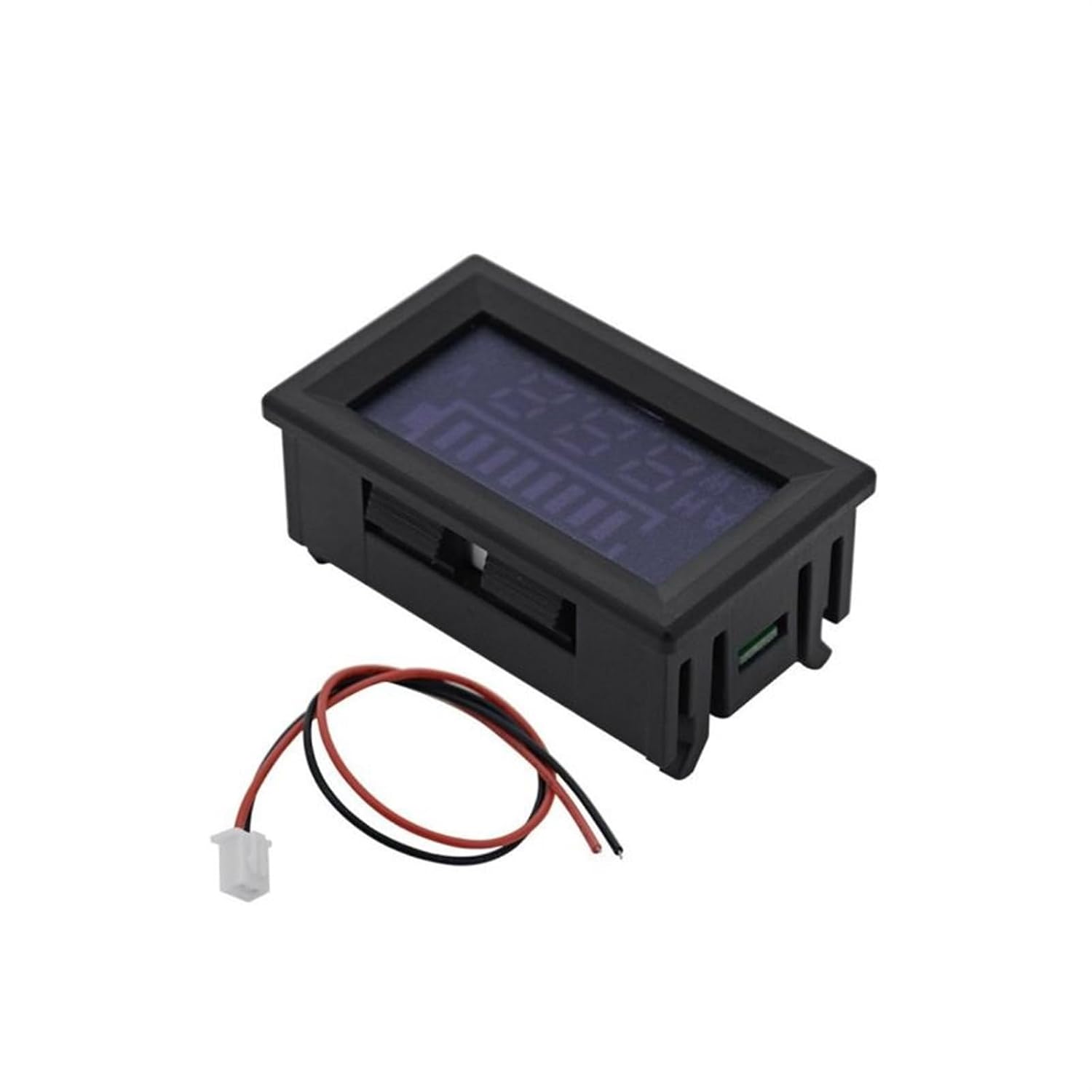

YB27VE Voltage Meter Lithium Indicator DC 12V 24V 48V 60V Li-ion Cell Lead Acid Capacity Display Gauge Voltmeter 1PCS(Color:Lead-Acid (White),Size:72V)

GaugesYB27VE Voltage Meter Battery Indicator 36V 48V DC 6-120V Lead Acid Battery Capacity Indicator Voltmeter Lithium Battery Gauge********************************************************************************************************************************Note:This tester for Lithium and lead-acid batteries Universal,the factory default setting for 12V lead-acid battery power and voltage cycle display,If you need to test other specifications can be re-set by yourself.Description:Suitable for lithium battery and lead-acid battery.The screen can display voltage, percentage of electricity at the same time.(Note: these three can be switched by the key.)Can measure adjustable voltage range of 6-120V.(Lead-acid battery 12V for this item)Setting Mode:Power on( red for + and black for -)Press a few seconds to setting mode: from 1-U, 2-b, 3-C to 4-d.1-U:Voltage calibration2-b:Setting battery type3-C:Setting number of battery4-d:Setting "showing mode"1-U:Voltage calibration:While on 1-U, press the button to enter into voltage calibration mode, release it and press again,voltage will be step-up adjusted; release the button and then press it to step-down adjust; Repeat adjust and save the setting while the screen flashand exist setting.2-b:Adjust battery type:While on2-b, press the button to change the type of battery press one by one will showed: 1.2V__2V__3.2V__3.7V__12V ( While adjust to appropriate battery type, release the button, save andexist setting when the screen flashing.)1.2V:Ni-MH battery, each battery 1.2V2 V:Lead-acid battery, each battery 2V12 V:Lead-acid battery, each battery 12V3.7V:Polymer lithium battery, each battery 3.7V3.2V:Lithium iron phosphate battery, each battery 3.23-C:Setting number of batteries:While on the "3-C" setting, press the button to enter into setting number of batteries.Release the

• Gauges
• Item weight: 0.11 pounds
