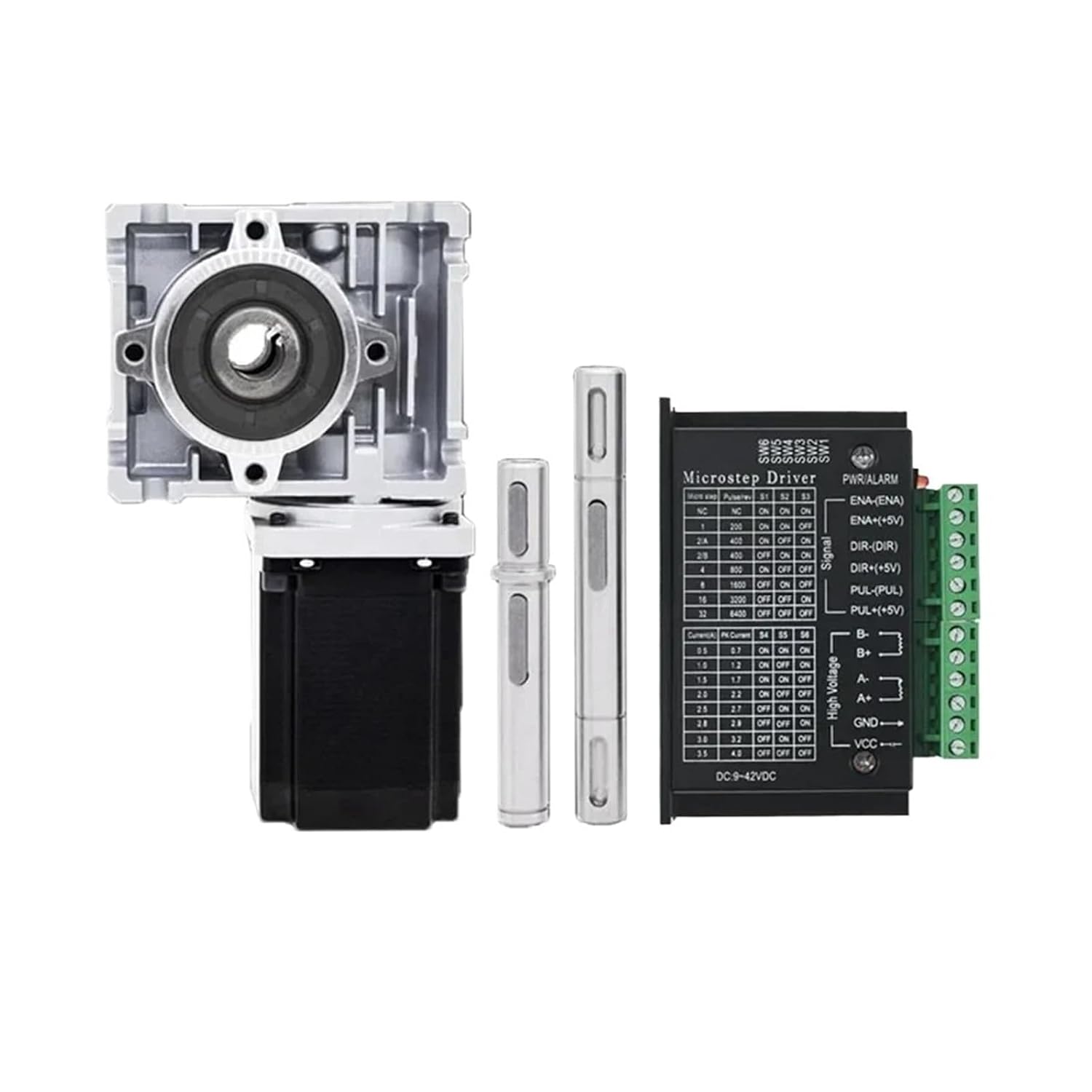

RV030 Worm Gearbox Right Angle Gear Reducer 90 Degree Nema 23 Stepper Motor Kit NRV030 Double Shaft(Speed Ratio 10 to 1,3NM-D Out S)

industrial motor1* RV030 Worm Gearbox 1* Gearbox shaft (If you choose Without Shaft please ignore it)1* Nema 23 Stepper Motor1* TB6600 Driver1* 8mm to 11mm motor shaft sleeveNema23 57mm Flange Stepper MotorModelModel:RV030 (NMRV030)Speed ratio: 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 40:1/ 50:1/ 60:1/ 80:1Backlash: about 100ArcminInput diameter: 11mmOutput hole diameter: 14mmWorm wheel: Nodular cast iron and bronze Worm shaft: 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm Housing: Aluminum with oven paintingLoad: Output torque=motor torque * speed ratio * Transmission efficiencyOutput speed=motor speed / speed ratio Driver Specifications:Model: TB6600Adapted motor: 42mm/57mm flange stepper motorInput voltage:DC 9-42VInput/ Output current: 0.5-3.5AMaximum power: 150WSubdivision: 1 2 4 8 16 32Model Number : 57HS5630A4+RV030G05-K+TB6600Origin : CN (Origin)Certification : CEMotor Type : Hybrid MotorMotor Phase : 2-phaseMotor Current : 3A/4.2ANumber of wires : 4 wiresStep angle : 1.8 degreeWorm wheel : Nodular cast iron and bronzGearbox Model : NMRV030Worm shaft : 20Cr steelDriver Input voltage : DC 20-50VDriver Subdivision : 400-25600
