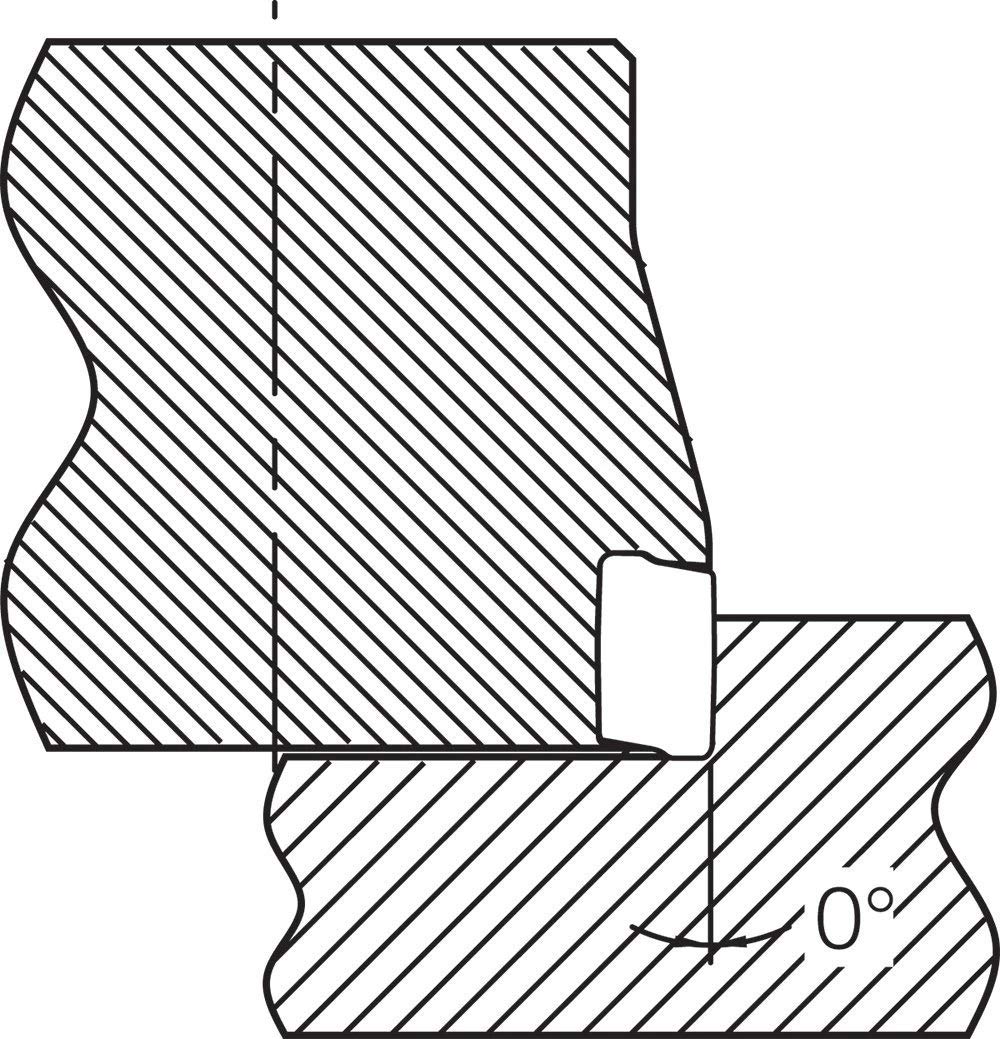

Kyocera MEC 100R119TN Inch Bore Diameter, Coarse Pitch, 9 Flute, 90 Degree Face Mill with a 100.00mm Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling, Plunging Applications

Low cutting force and reduced chattering for high-efficiency millingGreat for various milling applicationsCA6535 and PR1535 insert grades available for difficult-to-cut materialNew PDL025 grade for machining aluminumApplication: Shouldering, Facing, Slotting, Helical Milling, PlungingProduct Details:Cutter Style: MECHand of Holder: Right-HandSeries: MECLead Angle (Degree): 90Bore Diameter: InchCutter Pitch: Coarse Pitch[DC] Cutting Diameter (mm): 100.00NONENONENONENONE[DCB] Connection Bore Diameter (mm): 31.75[DCCB1] Connection Counterbore Diameter 1 (mm): 26.00[DCCB2] Connection Counterbore Diameter 2 (mm): 17.60[LF] Functional Length (mm): 63.00[CBDP] Connection Bore Depth (mm): 32.00NONENONE[KDP] Keyway Depth (mm): 8.00[KWW] Keyway Width (mm): 12.70[APMX] Maximum Depth of Cut (mm): 10.00NONENONENONENONENONENONENONENONENONENONENONENONENONENONENONENONE[A.R.] Axial Rake Angle (Degree): +23[R.R.] Radial Rake Angle (Degree): -7NONENONENumber of Inserts: 9Number of Flutes: 9Number of Stages: 1Maximum RPM: 10,400Multi-Use Tool: YesCoolant Through: YesInsert Holding Method: ScrewToolholder Material: SteelApplication: Shouldering, Facing, Slotting, Helical Milling, PlungingUnit of Measure: MetricCompatible Insert Hand: Right-HandCompatible Inserts (Partial): BDMT1704…ER-JT, BDMT1704…ER-JS, BDGT1704…FR-JA, BDMT1704…FRMEC Series Brochure

• Low cutting force and reduced chattering for high-efficiency milling
• Great for various milling applications
• CA6535 and PR1535 insert grades available for difficult-to-cut material
• New PDL025 grade for machining aluminum
• Application: Shouldering, Facing, Slotting, Helical Milling, Plunging
