ICUIXIAN 28x28 Seamless HDMI Matrix Switch Video Wall Controller 5x5 4K30Hz, 28 in 28 Out Multi-Viewer Video Switcher Processor/w Web, Audio Extraction, Scene Overlay, Partitioning, Zooming Stretch

Multi-view Seamless 28x28 HDMI Matrix Switch + Customizable Video Wall Controller 5x5 PIP 28-in 28-out HDMI Multifunctional Video Processor Switcher/Splitter This HDMI Matrix Video Wall Processor employs an ultra-high-definition distributed, fully interactive mode and is specifically designed for ultra-large command centers. The product is primarily used in large-scale public security and traffic police command centers, monitoring and process visualization platforms in large modern factories, and command facilities in ultra-large commercial complexes. The 28 input 28 output HDMI matrix video wall utilizes Huawei HiSilicon’s professional-grade video processing chips—industry-leading dedicated video SoCs designed for H.265 standard and 4K ultra-high-definition signal processing, delivering crystal-clear, high-definition images. The unit runs on an embedded Linux system with a modular design and a fully interactive hardware architecture, ensuring stable system operation. It supports 4K output and offers functions such as splitting, switching, arbitrary multi-window tiling, picture-in-picture, roaming, overlay, zooming, pop-up windows, subtitles, and patrol. Features of the 28x28 HDMI Matrix Video Wall Controller 4x7 1. Runs on the Linux operating system for secure and stable operation 2. 5x5 Video Wall Controller Multi-view Supports input resolutions up to 3840×2160@30Hz and output resolutions up to 3840×2160@30Hz, with backward compatibility 3. Features a distributed architecture for easy cabling and simplified maintenance 4. Housed in a 4U rack-mount chassis 5. HDMI Matrix 28x28 Supports audio embedding and de-embedding control 6. Video Wall Controller 5x5 Supports arbitrary splitting and merging of video images 7. Output ports support 1, 4, 9, 16, or 25-way splitting 8. The unit supports 16 layers 9. Text overlay function allows for arbitrary modification of input source signals 10. 28x28 HDMI Matrix Video Wall Controller Supports network-controlled keyboards and PC software operation 11. Built-in database enables export and import of user-configured parameters and video content 12. Hybrid matrix switcher Supports scenes, grouping, automatic multi-screen cycling, and automatic single-screen cycling 13. Features a modular card-based structure with support for up to 256 output service slots; multiple units can be cascaded to form a single system. Each chassis allows for flexible adjustment of output module configurations based on the large-screen installation site, facilitating the shortest possible cable layout for the display control system while simplifying system maintenance 14. HDMI Matrix Switch Video Wall Controller Supports LED text display functions, including built-in scrolling text and static text displays 15. Multi-Viewer Video Switcher Processor Supports quick operation switching between tablets and mobile phones 16. HDMI Matrix Multi-view Supports multi-unit cascading to enable unified management and operation of an extremely large number of channels 17. Personalized management features, with separate permissions for standard users and administrators 18. HDMI Matrix Switch Processor Supports windowing and roaming functions 19. 24x24 HDMI Matrix Supports visual operation, allowing users to view the large screen display content in sync with a computer or tablet and preview input source videos. 20. Seamless 24x24 HDMI Matrix Switch Video Wall Controller 4x6 4K30Hz, 24 in 24 out Multi-Viewer Video Switcher Processor with Web GUI, Audio Extraction, Scene Overlay, Partitioning, Zooming, Stretch

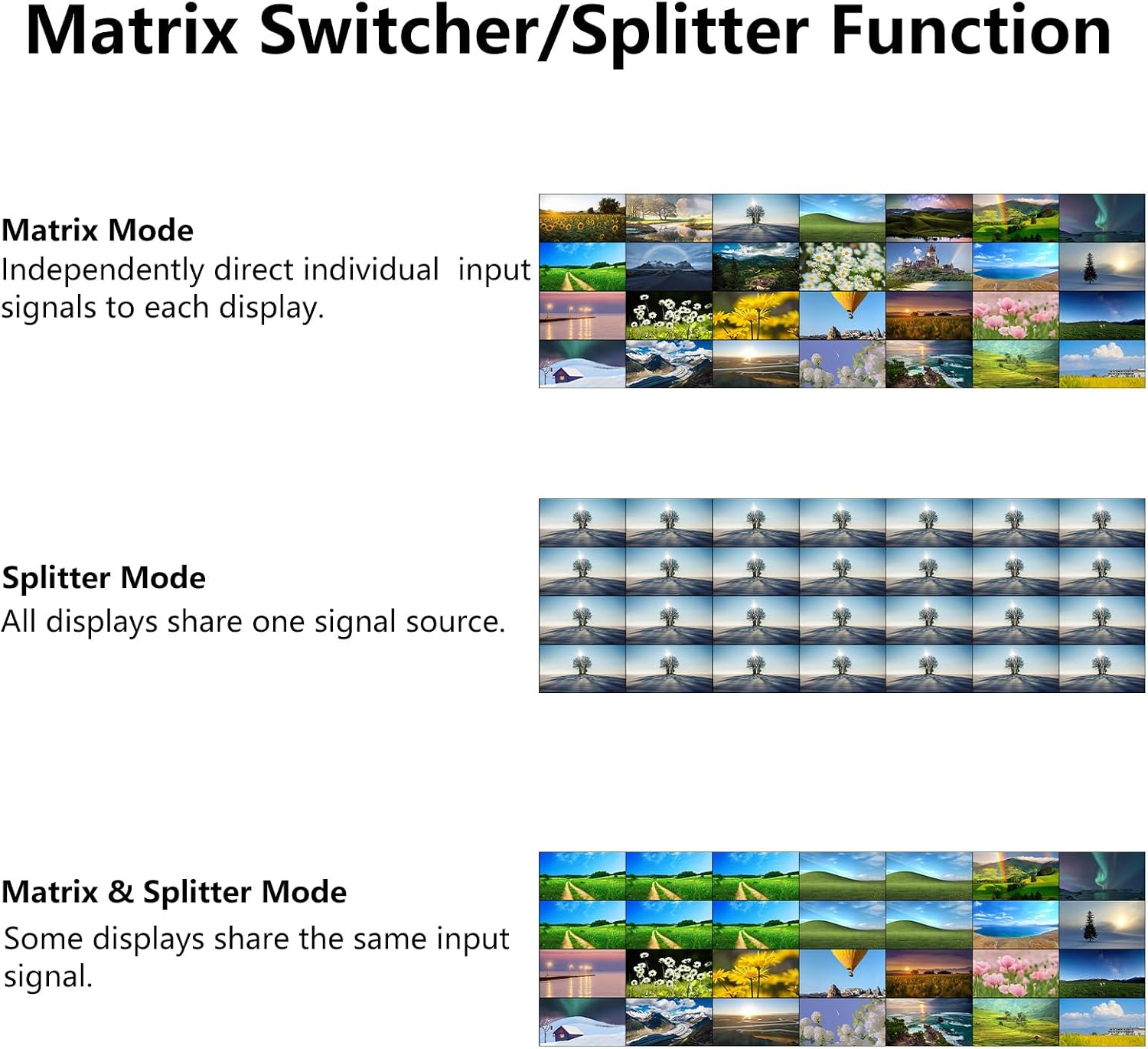

• 【① Seamless 28x28 HDMI Matrix Switch Video Wall Controller 5x5】The 28x28 hdmi matrix video wall controller 4x7 can function simultaneously as both an HDMI matrix and a video wall controller, enabling rapid switching between 28 input devices and 28 output displays in matrix mode. All 28 output ports can display the same or different content, and video wall mode is suitable for displaying content across 28 connected TVs.

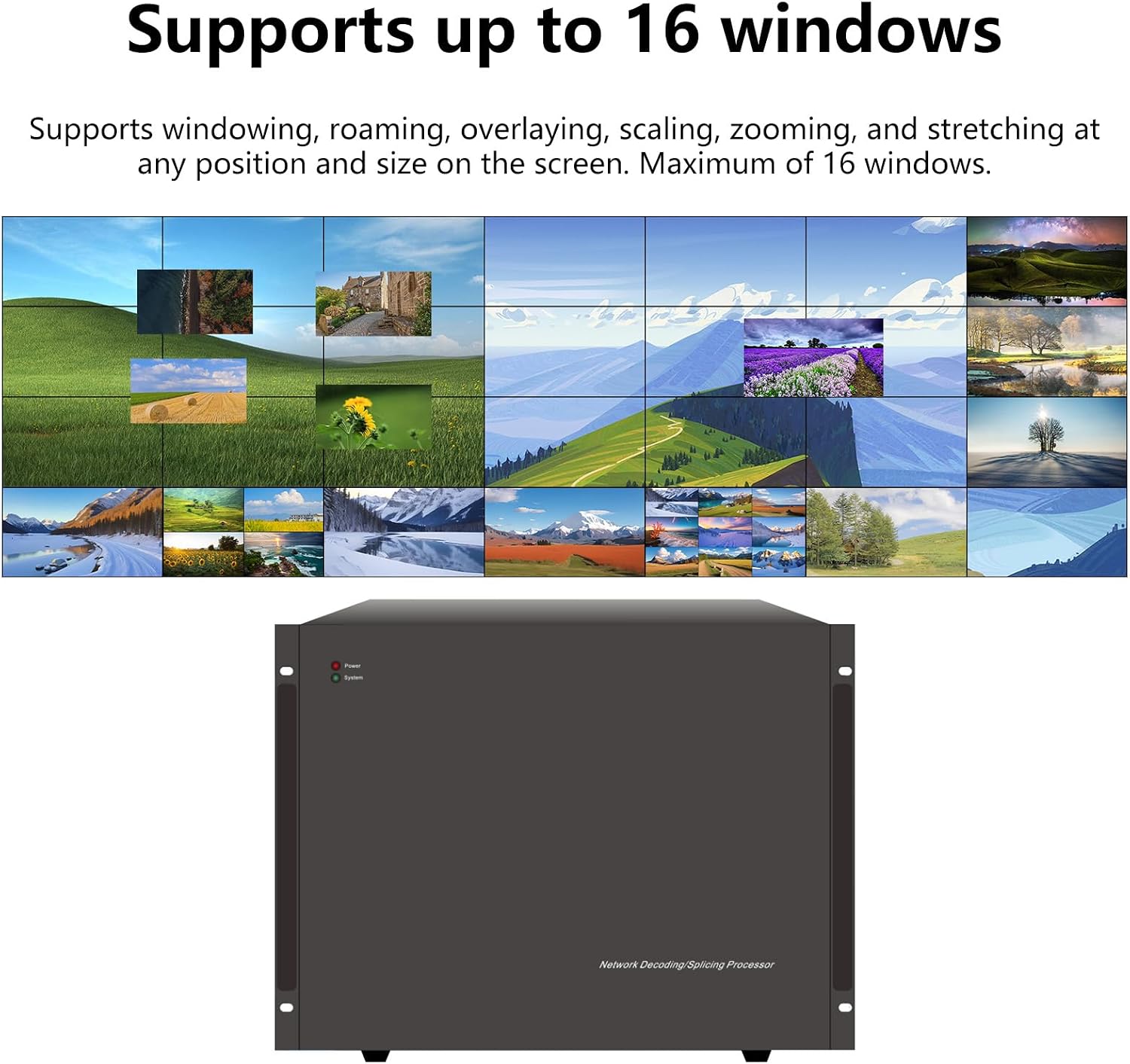

• 【② HDMI Multi-Function Multi-Viewer Video Processor】The device supports 1/4/6/8/9/16/25-view split-screen display, allowing input signals to be displayed on a single monitor. It offers flexible video splitting and merging capabilities, featuring 16-window display, splitting, switching, arbitrary multi-window tiling, picture-in-picture, roaming overlay, zooming, and stretching functions.
• 【③ 5x5 Video Wall Controller + 28x28 HDMI Matrix + PiP Picture-In-Picture Mode】HDMI Video Wall Controller Multiviewer Seamless Switch Matrix Can Choose 4x7, 4x6, 5x5, 4x5, 5x4, 3x6, 2x8, 3x5, 5x3, 3x4, 4x3, 3x3, 2x6, 2x5, 2x4, 2x3, 2x2, 1x4, 4x1... Video Wall Mode (With PiP Picture-In-Picture Function And Unlimited 4 Windows In A Single Screen)| And 1x28 HDMI splitter/28x28 Seamless HDMI Matrix Mode (Displaying The Same Image On All 28 Tvs Or Switching Between 28 Independent Sources)
• 【④ Control Methods and Overlay Functions】Can be controlled via a web interface or RS485 from computers, tablets, or smartphones; supports scene cycling, input source video preview, scrolling subtitles, OSD character overlay on input channels, scene rotation, and power-off memory functions.
• 【⑤ Offer the SDI-HDMI-VGA port option】This video processor features a modular card design. We offer a selection of commonly used card sets, including (but not limited to) HDMI, SDI, and VGA. You can also customize your setup by combining different card sets—for example, using an HDMI card set for input and an SDI card set for output—to meet your specific needs.
• 【⑥ What You'll Get Packing List】HDMI 28x28 Matrix Switch with Video Wall Controller and Multi-Viewer Function Video Processor x1 (Dimensions: 483mm L x 315mm W x 322mm H), US-spec Power Adapter x1, Ethernet Cable x1, User Manual x1.
