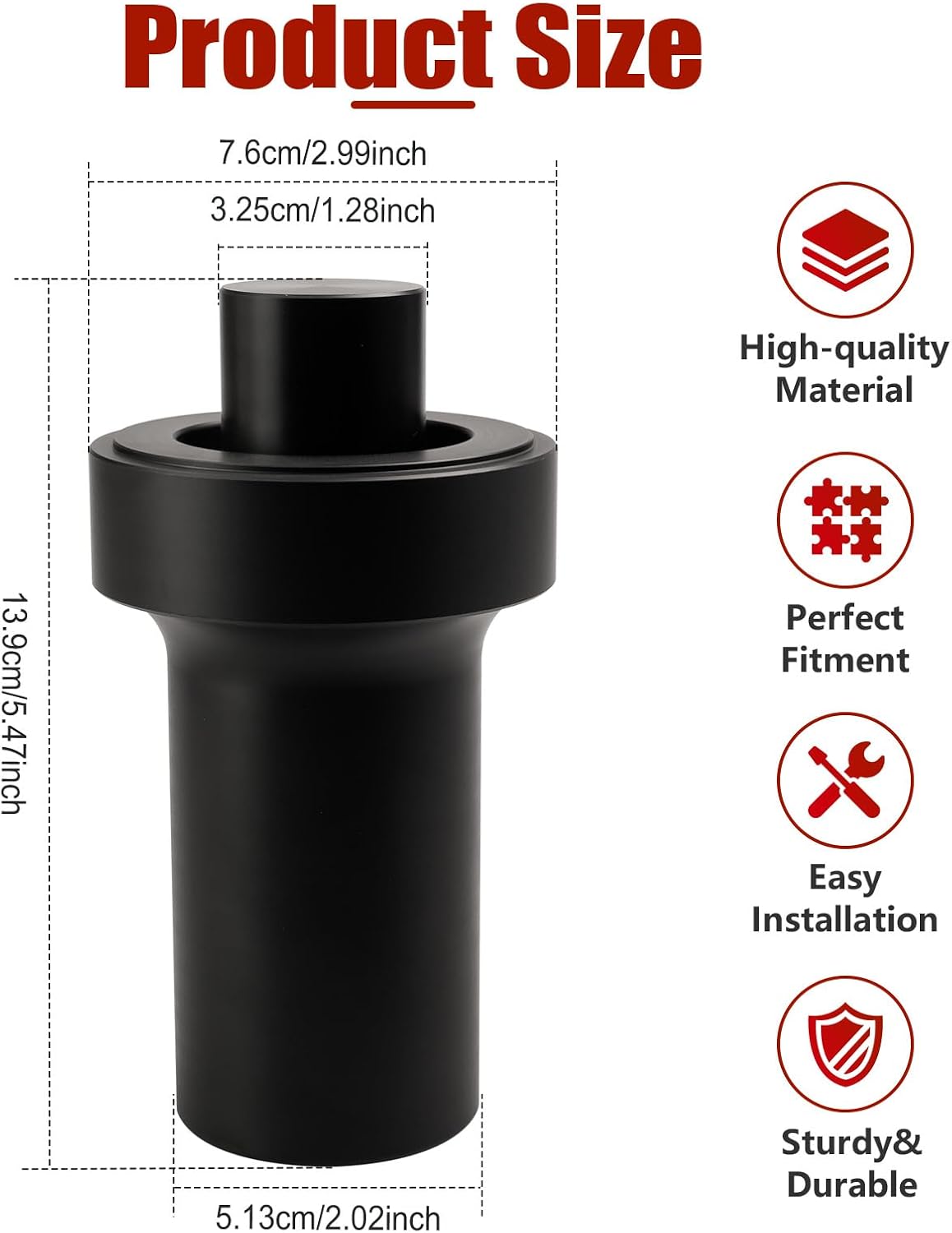

Front Output Seal Install Tool for Chevy GMC NP246 NP261 NP261XHD NP263 NP263XHD, T-M109RAC Adapt-A-Case Transfer Case Seal Installer, Compatible with 1998-Up Trucks

Keep your transfer case in peak condition with this precision-engineered Front-Output Seal Install Tool (OE Part Number: T-M109RAC). Specifically designed for General Motors trucks and SUVs equipped with NP246, NP261, NP261XHD, NP263, and NP263XHD transfer cases, this tool delivers a professional-grade seal installation experience for both experienced technicians and dedicated DIY mechanics.The tool's intelligent three-stage design works simultaneously: the pilot precisely centers the tool within the output shaft using the milled cavity and spline interface; the outer recess positions and drives the outer seal flush into the transfer case housing; and the raised inner surface seats the inner sleeved wiping seal correctly onto the output shaft — all in a single, controlled press.Constructed from durable iron with superior wear resistance, this installer maintains its precision geometry across repeated uses. The sturdy build ensures consistent performance under workshop conditions, making it a reliable addition to any automotive tool kit.Compatible with a wide range of 1998-and-up GM vehicles including Chevrolet Silverado, Suburban, Tahoe, Avalanche, GMC Sierra, Yukon, Denali, and Cadillac Escalade across multiple engine displacements (4.3L to 8.1L). Whether performing routine transfer case maintenance or a full rebuild, this OE-equivalent tool ensures your front output seal is installed correctly — protecting your drivetrain investment for years to come.

• 【OE PART NUMBER T-M109RAC】This front-output seal install tool carries OE part number T-M109RAC, designed as a direct replacement for Chevy and GMC transfer case seal installation. Fits NP246, NP261, NP261XHD, NP263, and NP263XHD transfer case models on 1998-and-up trucks, ensuring precise compatibility with your vehicle.
• 【WIDE VEHICLE COMPATIBILITY】Compatible with a broad range of GM vehicles including Chevrolet Silverado 1500/2500/3500, Chevrolet Suburban, Chevrolet Tahoe, Chevrolet Avalanche (2002-2007), GMC Sierra, GMC Yukon, GMC Denali, and Cadillac Escalade (1999-2000). Covers 4.3L, 4.8L, 5.0L, 5.3L, 5.7L, 6.0L, 7.4L, and 8.1L engine configurations.
• 【DURABLE IRON CONSTRUCTION】Crafted from high-grade iron with exceptional wear resistance and structural integrity. The robust design withstands demanding workshop conditions, delivering reliable performance across repeated use. Built to last, reducing the need for frequent tool replacements and ensuring long-term value.
• 【PRECISION-ENGINEERED DESIGN】The pilot centers the tool precisely inside the output shaft as the milled cavity accepts splines. The outer recess drives the outer seal squarely into the case, while the raised surface drives the inner sleeved wiping seal onto the output shaft — completing both sealing actions in a single, controlled motion.
• 【PROFESSIONAL-GRADE INSTALLATION】Designed for both professional technicians and DIY enthusiasts, this seal installer ensures accurate, damage-free seal placement every time. The tool's geometry prevents misalignment and seal distortion, delivering a factory-quality result. Ideal for transfer case maintenance, rebuild, or front output shaft seal replacement.
• Quality Assurance & Support - Manufactured to meet or exceed original equipment standards. Each unit undergoes rigorous quality control testing to ensure proper fitment and performance. Backed by responsive customer support team ready to assist with any questions or concerns.
