For Dometic 9200 RV Awning Motor Drive Repair Kit Assembly 3317084.000U

The 3317084.000U RV Awning Motor Drive Kit is designed for servicing select Dometic 9200 Series power awnings, providing a replacement for a worn or failed motor drive assembly that can prevent the awning from extending or retracting properly. This 12V RV power awning motor is compatible with select 925xx, 926xx and 927xx awning tubes and awning arm hardware kits 8962001.400U, 8962002.400U, 8962003.400U and 8964012.400U. Replacement Part Numbers Cross-reference your original part with: 3317084.000U 3316605.017 3316605.001 9600011003 For the most accurate fit, verify the awning series, original motor number, roller tube number and arm hardware number before ordering. Complete Motor Drive Repair Kit The package includes: 1 × RV Awning Motor Drive Assembly 1 × Black Drive-Side End Cover 3 × Installation Rivets The complete assembly eliminates the need to source the motor drive, cover and mounting rivets separately. Direct Replacement Installation Before installation, fully secure and support the awning and disconnect the RV's 12V power supply. Remove the original drive-side cover and motor wiring, remove the existing retaining rivets and old drive assembly, then align the replacement drive with the roller tube and awning arm hardware. Secure the replacement assembly with the included rivets, reconnect the wiring and test both EXTEND and RETRACT functions before returning the awning to normal use.

• 9200 SERIES COMPATIBILITY - RV awning motor drive kit compatible with Dometic 9200 Series power awnings, 925xx, 926xx and 927xx awning tubes, and hardware kits 8962001.400U, 8962002.400U, 8962003.400U and 8964012.400U.

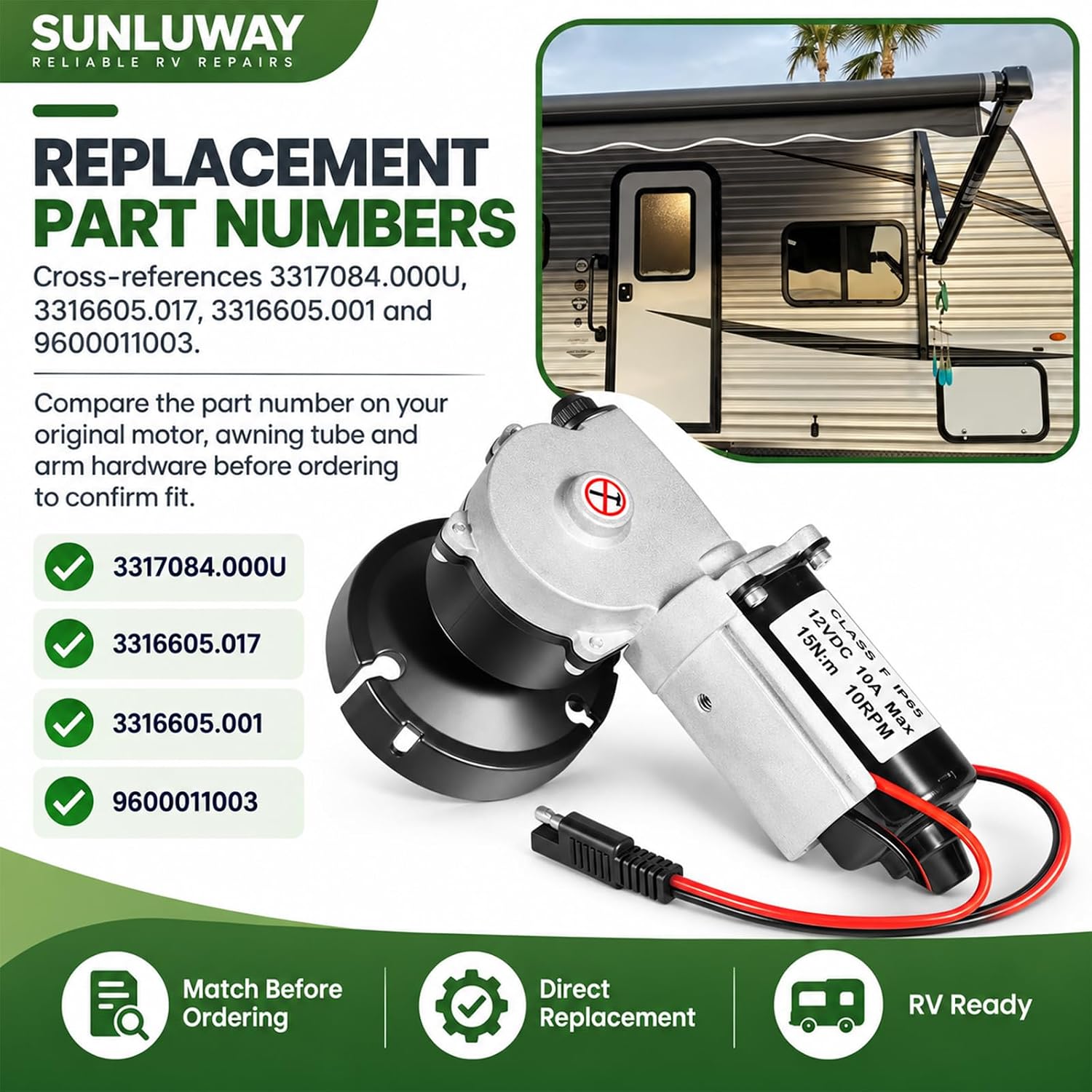

• REPLACEMENT PART NUMBERS - Cross-references 3317084.000U, 3316605.017, 3316605.001 and 9600011003. Compare the part number on your original motor, awning tube and arm hardware before ordering to confirm fit. Directly replacement for dometic awning motor on 9200 series
• RESTORES POWER EXTEND & RETRACT - The 12V RV awning motor transfers power through the drive head to the roller tube, helping restore smooth powered opening and closing when the original motor or drive assembly is worn or failed.
• COMPLETE DRIVE REPAIR KIT - Includes the motor drive assembly, black end cover and 3 installation rivets for drive-side service. A practical replacement for a damaged or worn awning drive head without replacing the complete awning system.
• DIRECT-FIT SERVICE INSTALLATION - Designed to mount at the powered end of compatible 9200 Series awnings. Secure the awning, disconnect 12V DC power, remove the old drive assembly, install the replacement, reconnect wiring and test extend/retract operation.
