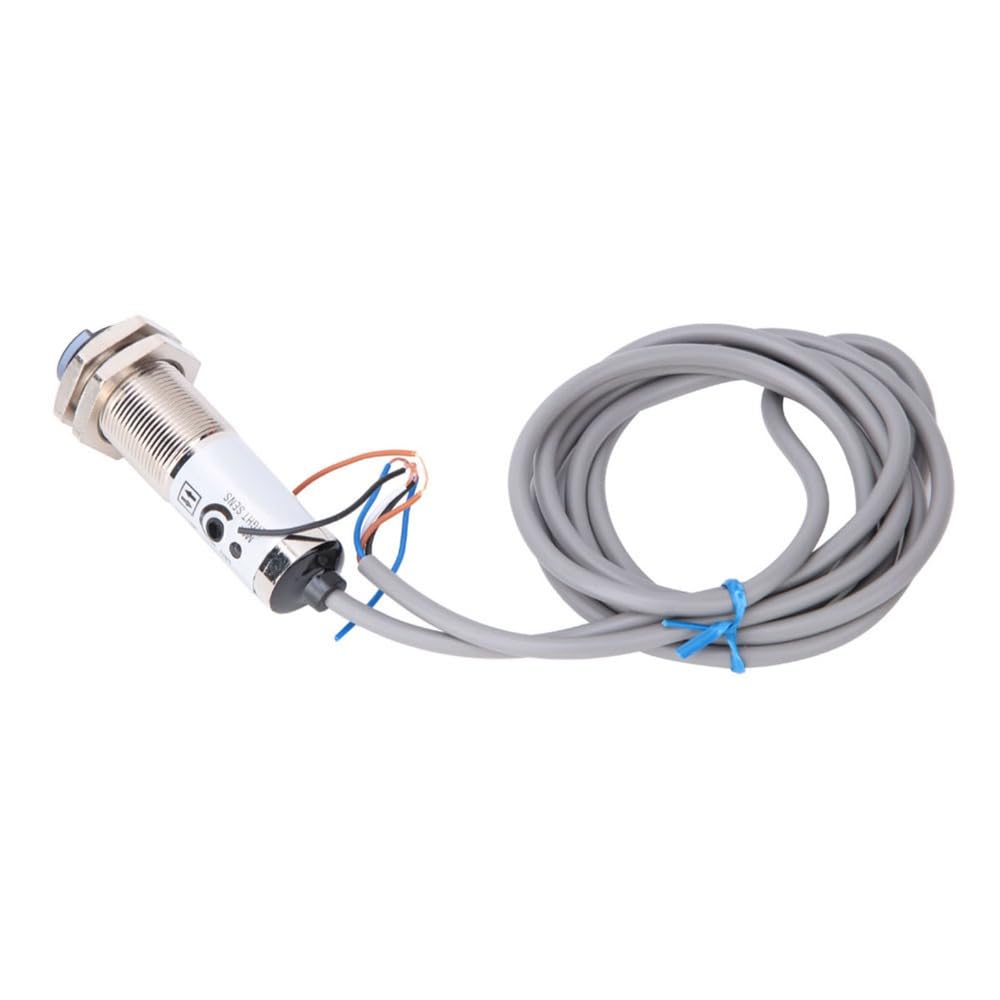

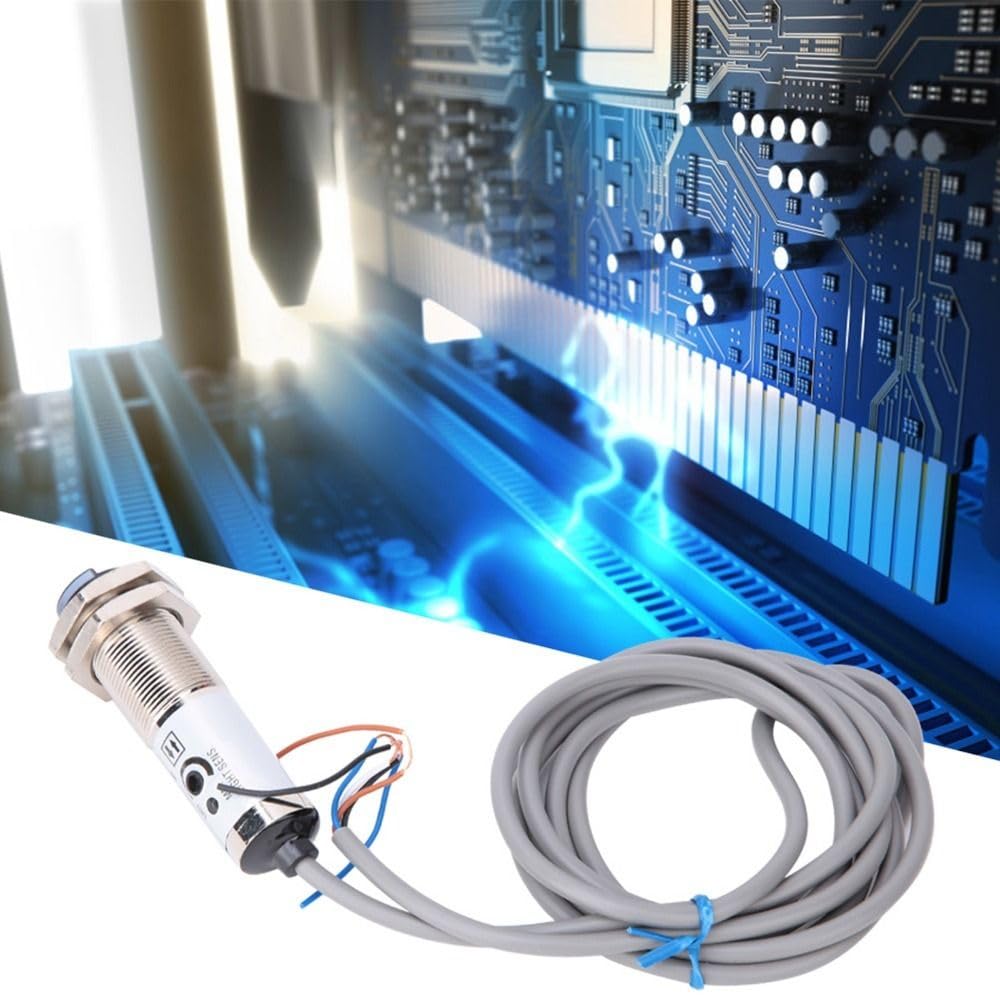

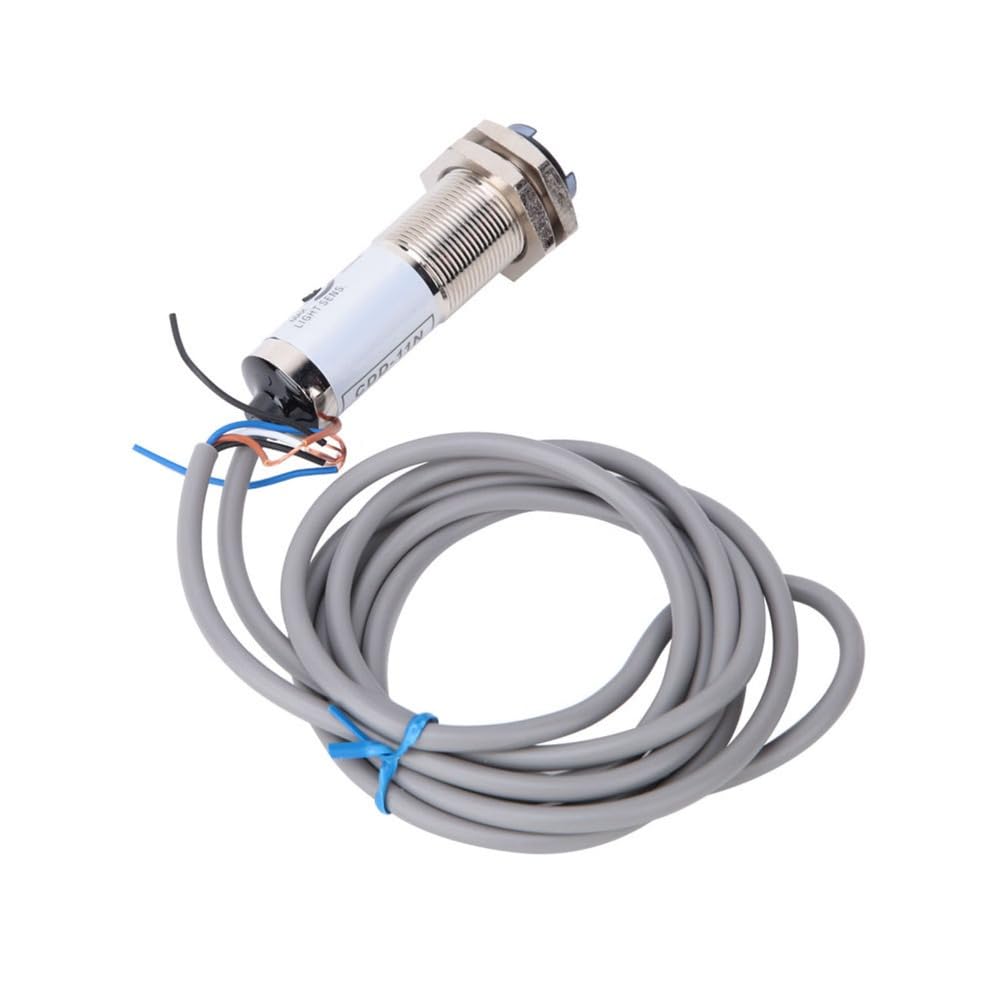

CDD-11N Infrared Proximity Sensor 1-10cm Detection NPN NO 4-Wire 12-24V DC IP66 Metal Housing Diffuse Reflection Photoelectric Switch
Product details
| Management number | 250266504 | Release Date | 2026/09/17 | List Price | US$5.60 | Model Number | 250266504 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
CDD-11N 10-100mm infrared proximity sensor utilizes diffuse reflection photoelectric technology for precise object detection. With NPN normally open output and 4-wire configuration, it operates at 12-24VDC with 300mA capacity. The cylindrical metal housing provides IP66 protection against dust and water ingressThis photoelectric sensor detects opaque objects through light beam interruption or reflection. Built-in synchronization circuitry activates upon object detection. Features multiple protection circuits for enhanced interference resistance and rapid response. Compatible with industrial automation systems requiring non-touch object detectionSpecification:Model: CDD-11NColor: GreyPower Supply Voltage: DC12-24VOutput Form & Condition: NPN NODetection Distance: 10mm(0.39in)-100mm(3.9in)Detecting Objects: Opaque objectsCylindrical Head Diameter: 18mm(0.71in)Line Length: 200cm(78.74in)Light Source Type: Transmitting tubeInduction Method: Diffuse reflectionProtection Level: IP66Housing Material: MetalControl Output: <200mACurrent Consumption: <10mAResponse Frequency: 500HzIndicator Light: Action indicator (red LED)Insulation Resistance: >50Mohm (500VDC megohm reference)Withstand Voltage: 1500VAC 50/60Hz 1minVibration Resistance: 10-55Hz (cycle one minute) amplitude 1mm(0.04in) X, Y, Z 2 hours in each directionImpact Resistance: 500m/s² (50G) X, Y, Z 3 times in all directionsOperating Environment: -25~+70°C, 35-95%RHStorage Environment: -30~+80°C, 35-95%RH Package List:1 x Photoelectric Sensor SwitchNote:1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding
- Precision 1-10cm Detection: Uses infrared diffuse reflection to sense opaque objects (non-metallic included) with ≤500Hz response frequency and near-zero delay
- Industrial-Grade Durability: Metal housing (IP66) withstands 50G impacts, 1500VAC insulation, and -25°C to 70°C temperatures for harsh environments
- NPN NO Output: 4-wire configuration (12-24VDC) supports<200mA load; red LED indicator confirms target detection
- Multi-Protection Design: Built-in anti-interference circuits ensure stable run near motors or high-frequency equipment
- Easy Installation: 18mm cylindrical head with 2m cable (78.74in) for flexible mounting in conveyor systems or automated machinery
| ASIN | B0FXDTB989 |
|---|---|
| Model | d49fa6239a |
| Brand Name | Chiffonade |
| Style Name | Industrial |
| Unit Count | 1 Count |
| Output Type | Digital |
| Part Number | PHMCY1B70/PH04-YT |
| Manufacturer | whaofeifeng |
| Material Type | Metal |
| Mounting Type | Surface Mount |
| Current Rating | 200 milliamps |
| Measuring Range | 10mm - 100mm |
| Number of Items | 1 |
| Sensing Distance | 10 centimeters |
| Included Components | Photoelectric Sensor Switch |
| Maximum Supply Voltage | 24 volts_of_direct_current |
| Upper Temperature Rating | 70 °C |
| Specific Uses For Product | industrial automation, conveyor systems, automated machinery, harsh environments, near motors or high-frequency equipment |
