Camshaft Timing Locking Tool for Ford Jaguar Land Rover 2.0T 2.3T EcoBoost
US$19.96
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by awardsclub.co.uk
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$19.96
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by awardsclub.co.uk
Free 30-day returns Details
Product details
| Management number | 250321552 | Release Date | 2026/09/17 | List Price | US$19.96 | Model Number | 250321552 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Precision Timing Locking for 2.0T and 2.3T EcoBoost Engines] This 13-piece timing tool kit locks camshaft and crankshaft at TDC for timing chain replacement, cylinder head service, or crankshaft pulley removal. Compatible with Ford 2.0T and 2.3T EcoBoost (204PT/GTDi/Si4) engines in Focus, Mondeo, Galaxy, S-MAX (2010-2018), Mustang, Focus RS, Explorer, Jaguar XE/XF/XJ GTDi (2012-2016), and Land Rover Evoque/Freelander 2/Discovery Sport Si4 (2011-2016). OEM replacement for 303-1600-KIT complete set.
- [Hardened Steel with CNC Precision] Made from 45# carbon structural steel, quenched to HRC42-48 for wear resistance. CNC wire-cut forming holds locating surface tolerance within ±0.04mm, matching factory accuracy. Nickel-plated locating plates resist corrosion; black-oxidized locking screws prevent slipping; mirror-polished locating pins ensure smooth insertion and precise positioning.

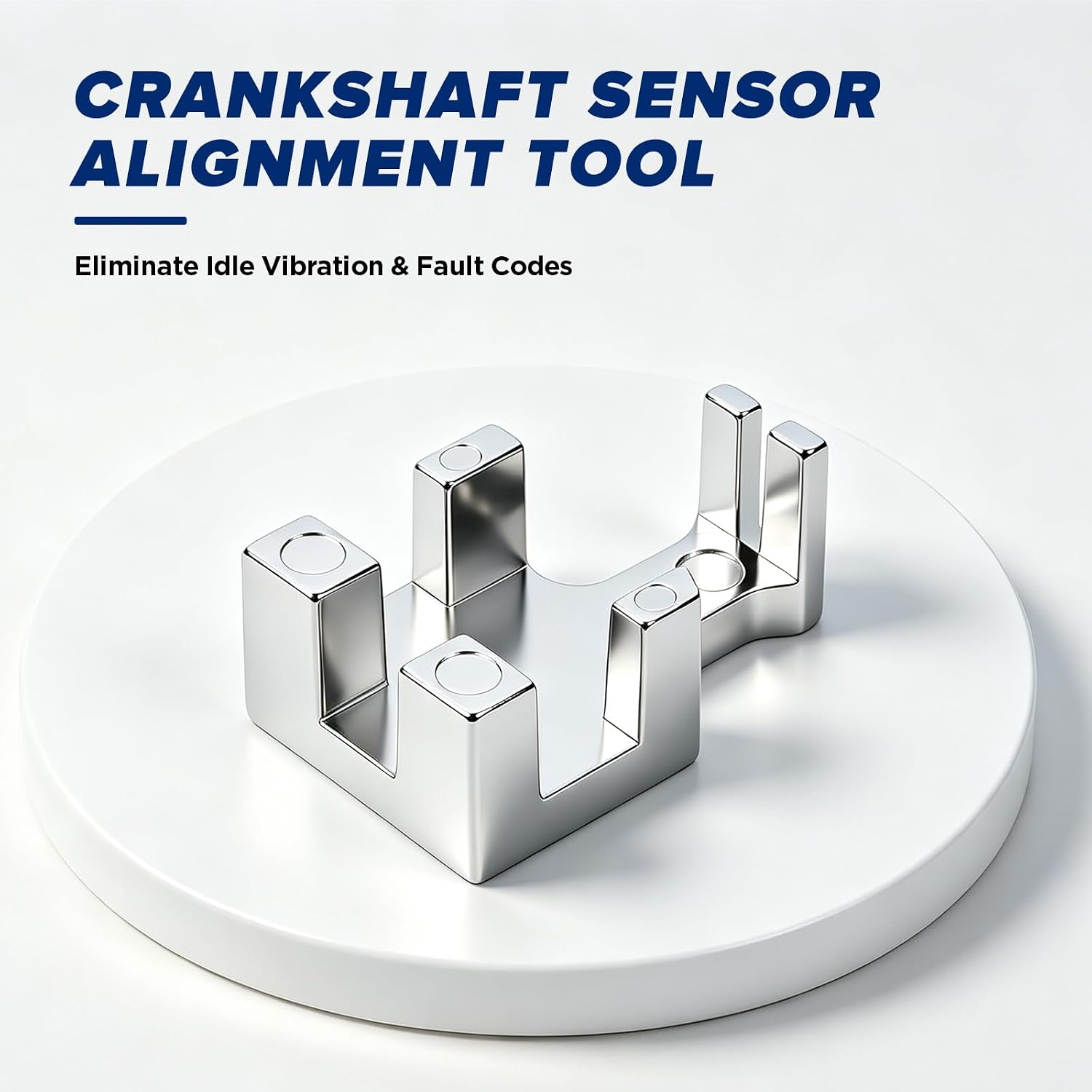

- [Complete 13-Piece Set Contents] Includes: camshaft main alignment plate (OEM 303-1504), two auxiliary alignment plates (303-1600/303-1565), flywheel holding tool (303-1594), crankshaft pulley alignment plate with locating pin (303-1595), TDC locking pins (303-748, long and short), crankshaft sensor alignment tool (303-1521), crankshaft fine alignment pin, two cam plate locking knobs, and L-type hex key wrench. Impact-resistant PP tool box with custom EVA foam insert for storage and portability.
- [Professional Repair Applications] Ideal for timing chain/guide/tensioner replacement, cylinder head service (valve seals, lapping), camshaft removal/installation, crankshaft front/rear oil seal replacement, pulley bolt removal, and cam/crank sensor calibration. These are interference-type engines; timing deviation beyond 1 tooth causes piston-to-valve contact. Professional-grade tool required for dealer-level precision.
- [Torque Specifications and Important Notes] Factory torque: VVT center bolt 72 N·m; crankshaft pulley bolt 100 N·m + 90°; chain guide bolts 9-10 N·m; tensioner bolt 10 N·m; sensor bolts 7 N·m. This kit fits Ford-platform 2.0L EcoBoost (204PT/GTDi/Si4) engines only. Does NOT fit 2017+ JLR Ingenium PT204 engines. Verify engine code and year before use. Do not hammer or force tools; damaged locating surfaces require immediate replacement.
| ASIN | B0H4V8G7J6 |
|---|---|
| Brand | MR CARTOOL |
| Model | PT204 AJ200 2.0T Engine Timing Tool Kit |
| Item Weight | 7.04 pounds |
| Manufacturer | MR CARTOOL |
| OEM Part Number | 303-1600-KIT |
| Item model number | 456 |
| Package Dimensions | 13.39 x 10.24 x 2.95 inches |
| Manufacturer Part Number | MRC-PT204-01 |
