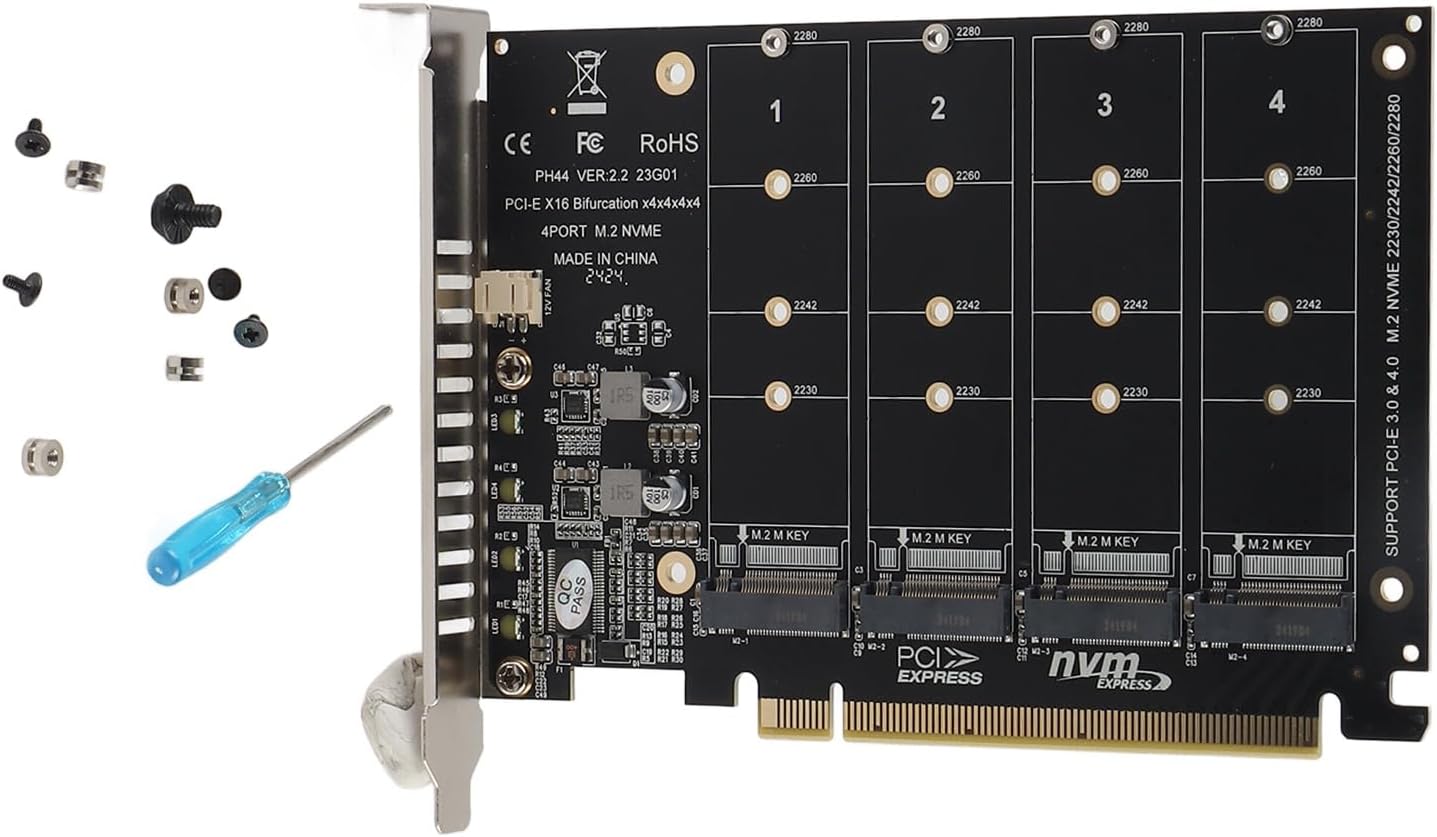

Adapter Card, 4 Port M.2 NVMe SSD to PCIE X16 Expansion Card, Supports RAID Function, PCIE 3.0, 4.0 Protocol (PH44)

SpecificationItem Type: Adapter CardModel: PH44Support Hard Disk: M.2 NVME Protocol SSD / M.2 PCIE EquipmentTransmission Speed: 4 x 32Gbps1.Motherboard support:The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCI‑E RAID function. Motherboard supports the function of HyperM.2X16 expansion card. Different motherboards have different PCIE split channels. Some motherboards PCIE RAID is X8+. X4+X4, this motherboard 4‑bit M.2 card can only support SSDs or devices, and 2‑bit M.2 card can only support 1 M.2 SSD or device. If you need to use this product normally, please select the motherboard correctly. Many motherboards share PCIE channels. Make sure that the motherboard can support the function of PCIE splitting. If you cannot recognize that many M.2 SSDs or devices, please remove or replace other PCIE devices, such as graphics cards, expansion cards, and onboard NVME SSDs.Server motherboards, X299 and X399 motherboards have split function2.CPU support is required, and the CPU must have enough channels. Generally, low‑end CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.Package List1 x Adapter Card4 x Nuts5 x Screws1 x Screwdriver

• 【FEATURE】This adapter card has 4 expansion cards, which can simultaneously expand 4 x 32Gbps full‑speed .
• 【FIRM STRUCTURE 】Adopts a firm structure and uses thicker PCB material to stabilize the PCIE X16 interface and important data.
• 【FUNCTION】The motherboard supports PCIE split or PCIE RAID function, and supports PCIE 3.0, 4.0 protocol.
• 【ADVANTAGE】No disk drop, no speed reduction, no blocking, and equipped with high‑power DC power chip to ensure stable of M2.NVME SSD.
• 【4 DISKS ARE EQUIPPED WITH 4 LED INDICATORS】4 disks are equipped with 4 LED indicators, and the is simple and convenient to use.
