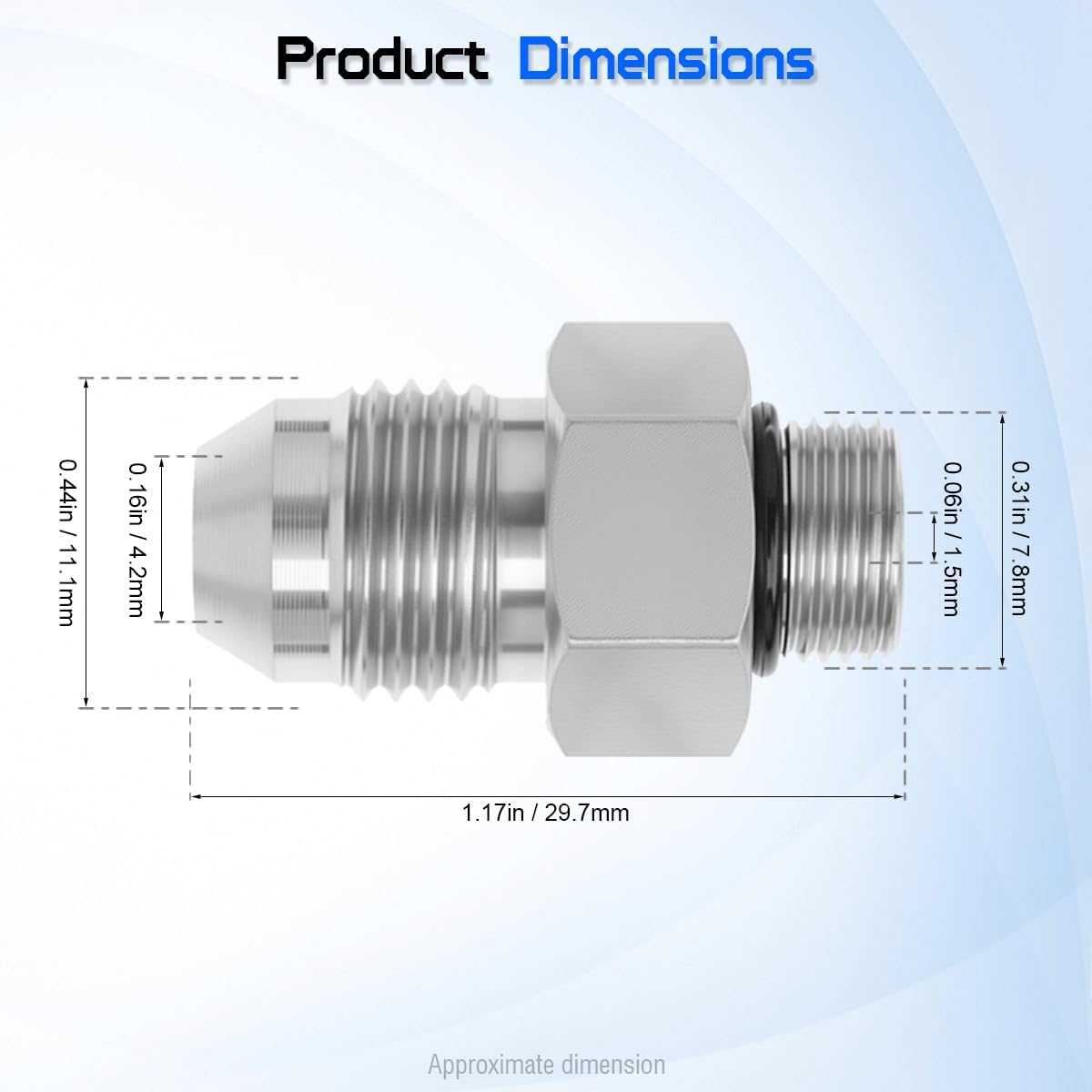

6400-04-02 Hydraulic Adapter Fitting 1/4" JIC 37° Male x 1/8" SAE ORB Male

6400-04-02 1/4" JIC Male x 1/8" SAE ORB Male 1/4" jic male x 1/8" orb male hydraulic hose adapter fittings jic fitting hydraulic hose adapter fittings male hydraulic fittings jic orb jic hydraulic fittings hydraulic hose adapter fittings 1/4" JIC Male x 1/8" 6400

• 【Superb Compatibility】6400-04-02 straight thread adapter. One end is a 1/4" JIC 37° Flare Male (-04) thread, and the other is a 1/8" SAE ORB (O-Ring Boss) Male (-02) straight thread. Designed to convert between JIC flare connections and ORB ports in hydraulic systems.
• 【Quality Craftsmanship】Constructed from high-tensile carbon steel, this adapter is built to withstand extreme pressure spikes, vibration, and shock loads encountered in mobile and industrial equipment. The corrosion-resistant zinc plating provides a durable barrier against rust and wear, ensuring reliability in the toughest environments.
• 【Sealing Performance】The SAE ORB male end utilizes a captive O-ring (typically included) that compresses against a flat surface to create an extremely reliable, leak-free seal. This design is superior to tapered threads in high-vibration applications, preventing leaks and reducing maintenance needs. The JIC male end creates a metal-to-metal 37° flare seal.
• 【Easy Installation】The pre-installed O-ring on the ORB end eliminates the need for thread sealants or tape – simply hand-tighten then torque to spec. The JIC end seals metal-to-metal without any sealant. No special tools, no mess, no guesswork. Get your hydraulic system back online in minutes.
• 【Wide Applications】Ideal for converting JIC flare hoses to ORB ports on hydraulic valves, cylinders, pumps, and manifolds in agriculture, construction, and industrial machinery. Each fitting is rigorously inspected and tested. We are confident in the quality and fit of our product.
