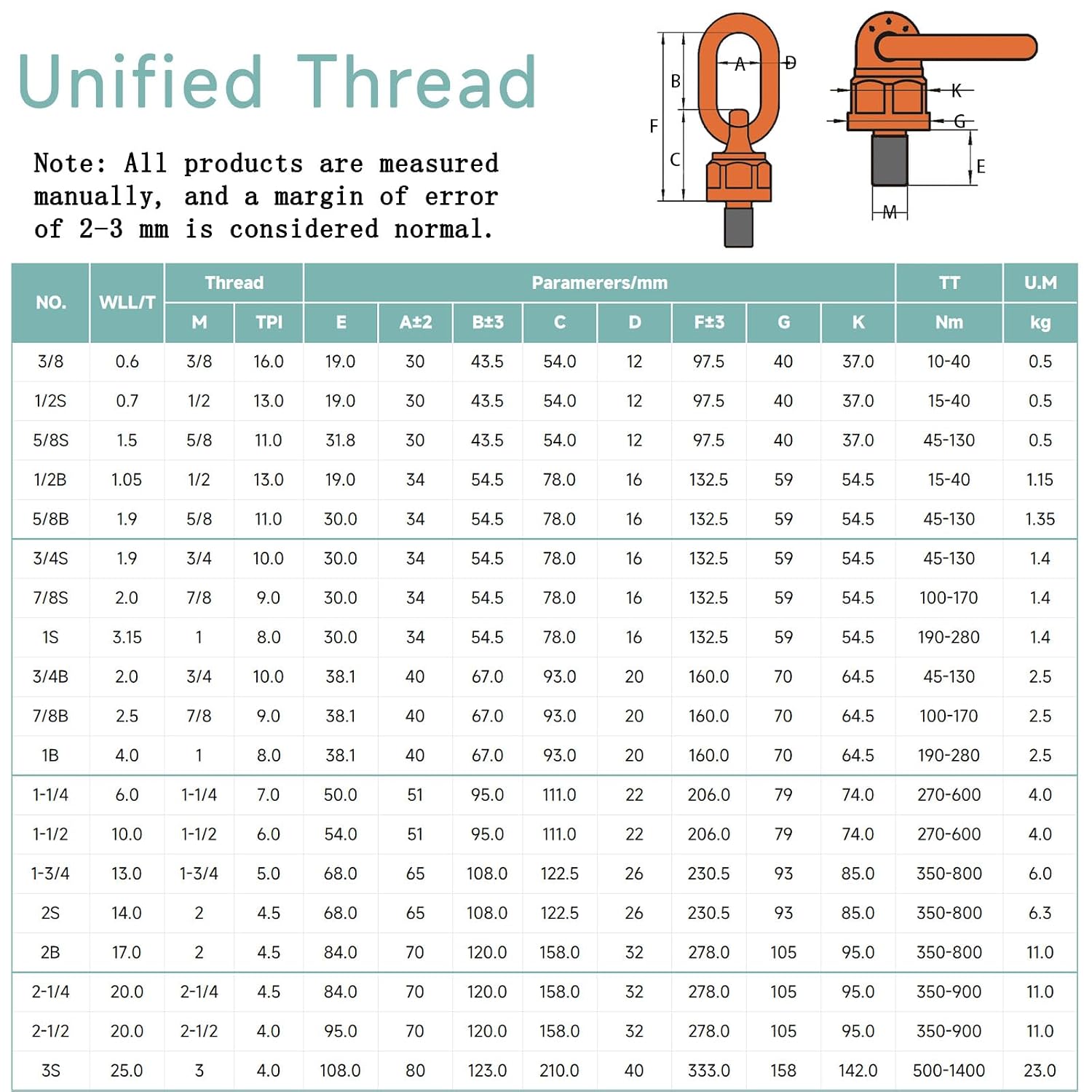

4 Pack Swivel Hoist Ring & Swivel Eye Bolt 1/2"-13 UNC, 0.7 Ton WLL, G80 Alloy Steel, 360° Rotation, Tensile Strength ≥1080N/mm², Zinc-Plated & Corrosion Resistant for Overhead Rigging
Product details
| Management number | 250197934 | Release Date | 2026/09/17 | List Price | US$50.80 | Model Number | 250197934 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description Heavy-Duty Swivel Hoist Ring for Professional Lifting Applications This 1/2"-13 UNC swivel hoist ring is engineered for overhead lifting, rigging, and material handling. Built from G80 grade alloy steel with a tensile strength exceeding 1080N/mm², it delivers reliable performance under demanding conditions. Key Features： Thread Size： 1/2"-13 UNC (Standard Coarse Thread) Working Load Limit： 0.7 Ton (1543 lbs) Material： G80 Alloy Steel, heat-treated Tensile Strength： ≥1080 N/mm² Rotation： 360° full swivel Safety Factor： 4:1 Finish： Corrosion resistant coating Applications： Overhead crane lifting Workshop hoists and winches Marine rigging and docking Heavy equipment transportation Mold and die handling Construction material lifting Important Safety Notice： Always inspect the hoist ring before each use. Do not exceed the 0.7 Ton working load limit. Ensure the mounting hole thread is exactly 1/2"-13 UNC. Use with properly rated lifting slings and hardware.
- 【Precision 1/2"-13 UNC Thread】 Standard Unified National Coarse thread. Compatible with all standard 1/2"-13 UNC nuts and tapped holes. Please verify your equipment thread size matches 1/2"-13 UNC before ordering.
- 【0.7 Ton Working Load Limit】 Individually proof-tested to ensure safety. Meets G80 grade standards. 4:1 safety factor for overhead lifting. Never exceed the working load limit.
- 【G80 Alloy Steel Construction】 Made from heat-treated chromium-molybdenum alloy steel. Tensile strength ≥1080N/mm² provides excellent resistance to deformation and fracture under heavy dynamic loads.
- 【Full 360° Swivel Design】 Allows the lifting eye to rotate freely, eliminating cable kinking, binding, and tangling. Automatically aligns with sling angle for safer diagonal and multi-directional lifting.
- 【Corrosion Resistant Finish】 Protective coating resists rust and corrosion. Ideal for workshop hoists, garage lifts, marine rigging, and outdoor overhead lifting applications. Wipe clean and apply light oil after use to extend service life.
| UPC | 742004991181 |
|---|---|
| ASIN | B0GYF6G5BZ |
| Brand | AVMAXCAM |
| Set Name | Swivel Hoist Ring & Swivel Eye Bolt 4 Pack |
| Head Type | Eye |
| Size Name | 1/2S X 19 |
| Metal Type | Alloy Steel |
| Unit Count | 1 Count |
| Part Number | uncdh |
| Thread Size | 1/2"-13 UNC |
| Thread Type | Unc |
| Finish Types | Zinc-Plated |
| Manufacturer | AVMAXCAM |
| Thread Style | Left Hand |
| Fastener Size | 1/2"-13 UNC |
| Fastener Type | Eye Bolt |
| Item Diameter | 0.5 inches |
| Item Hardness | Grade 8 |
| Material Type | Alloy Steel |
| Exterior Finish | Zinc |
| Item Dimensions | 1 x 2 x 2.7 inches |
| Number Of Items | 2 |
| Thread Coverage | Partially Threaded |
| Number of Pieces | 4 |
| Screw Head Style | Eye |
| Manufacturer Grade | G80 |
