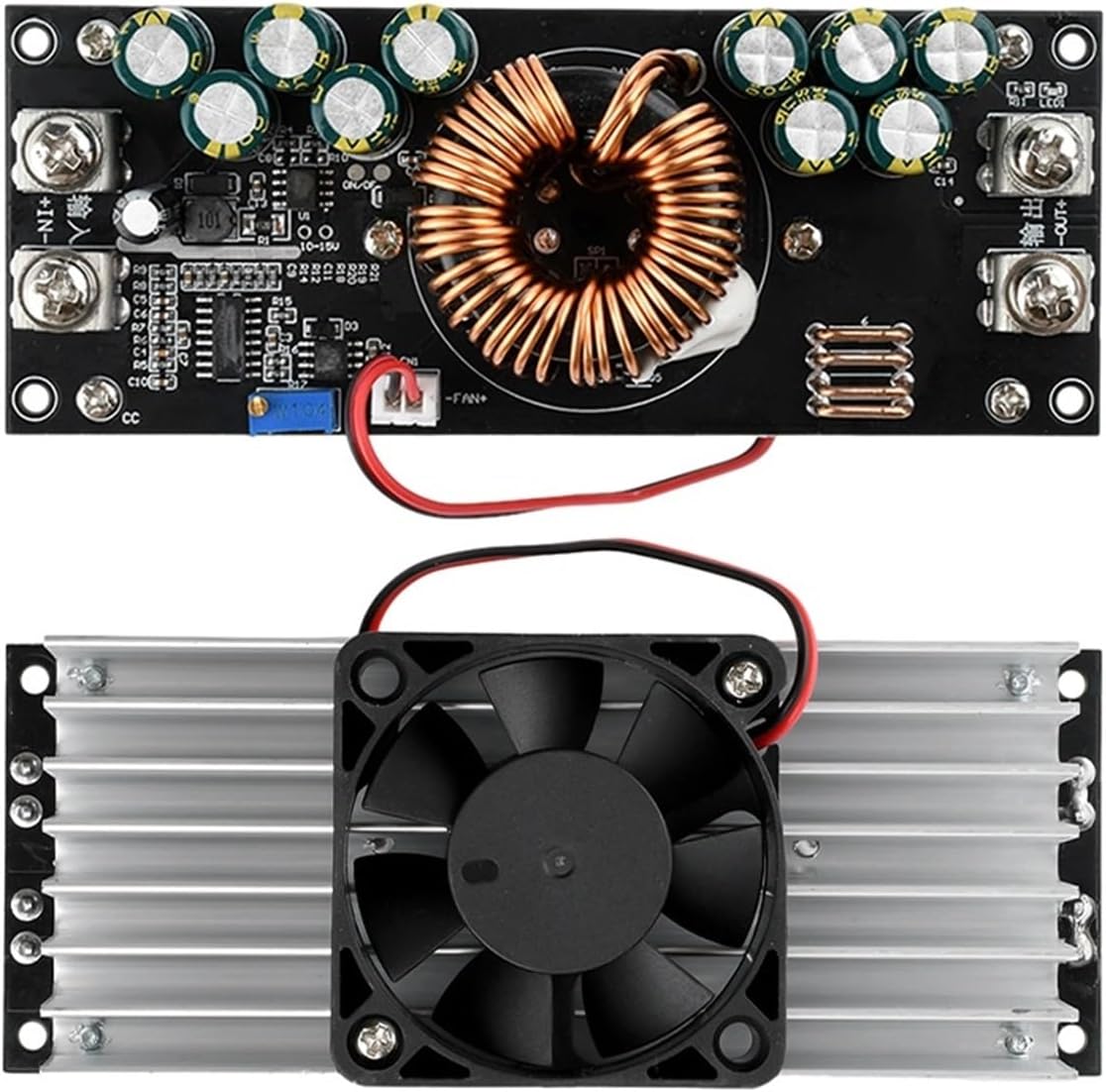

1500W 1200W DC-DC Buck Converter 15-90V to 2.5-72V Adjustable Step-Down Module Constant Voltage 50A Voltage Regulator(1200W)

Power Module - ATCModule Type:Non-isolated buck converter (BUCK)Specification: 1200W/1500W (Optional)1200W Specifications:Input Voltage: DC 15-90V (Alternatively, 10-15V input is possible by shorting the '12-15V' terminals. Once shorted, only 10-15V input is permitted. Inputs exceeding 15V will damage the module; shorting '10-15V' renders the ON/OFF function inoperative)Output Voltage: 2.5-72V (must satisfy buck condition: IN input multiplied by 0.8 equals maximum output voltage)Minimum Output Voltage: 2.5VMaximum output voltage: 72V (at 90V input) Input voltage × 0.8 equals output voltageMaximum output power: 1200W (requires well-ventilated operating environment, output voltage 50V)Continuous rated power: 1000W (in ventilated environment)Continuous rated current: 25A (in ventilated environment)Maximum output current: 30AHeat dissipation method: Air-cooledOutput ON/OFF switch interface: Present (requires user wiring)Operating temperature: -10 to +65°COperating frequency: 80kHzConversion Efficiency: Up to 97% (efficiency depends on input/output voltage, current, and voltage differential)1500W Specifications:Input Voltage: DC 15-90V (Alternatively, 10-15V input is possible by shorting the '12-15V' terminals. Once shorted, only 10-15V input is permitted. Inputs exceeding 15V will damage the module, and shorting '10-15V' will disable the ON/OFF function)Output Voltage: 2.5-72V (Must satisfy buck conversion conditions; IN input multiplied by 0.8 equals maximum output voltage)Minimum Output Voltage: 2.5VMaximum Output Voltage: 72V (at 90V input) Input voltage multiplied by 0.8 equals output voltageMaximum Output Power: 1500W (requires well-ventilated operating environment)Continuous Rated Power: 1200W (in ventilated conditions)Continuous Rated Current: 45AMaximum Output Current: 50ACooling method: Air-cooledOutput ON/OFF switch interface: Present (requires user wiring)Operating temperature: -10 to +65°COperating frequency: 80kHzConversion efficiency: Up to 97% (efficiency depends on input/output voltage, current, and voltage differential)Package listDC step-down module*1 (1200W/1500W)==========EANCode : Power ModuleOutput Frequency : 80KHzModel Number : DC-DC Step down Power SupplyWeight : Step Down Buck ConverterSize : Non-isolated buck power supply moduleOutput Type : SINGLEProduct Name : Adjustable Constant Voltage Buck Converter ModuleFeature : DC-DC Step down Buck Converter Power Supply Module,Adjustable Voltage Converter ChargerType : DC-DC Step-down Module 1500W 1200W,Step Down Buck Power Supply Module

• Power Module - ATC
• EANCode : Power Module
• Output Frequency : 80KHz
• Model Number : DC-DC Step down Power Supply
• Weight : Step Down Buck Converter
• Size : Non-isolated buck power supply module
