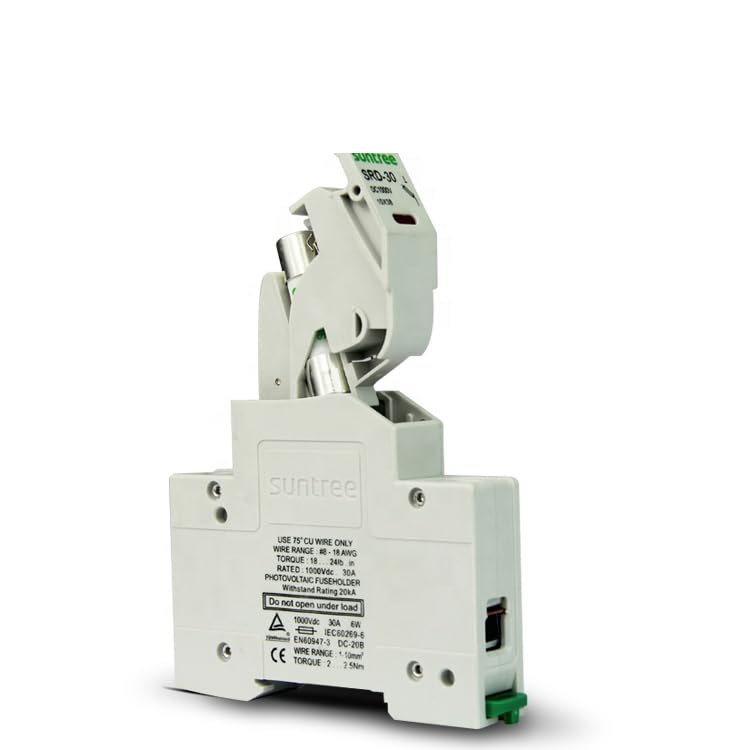

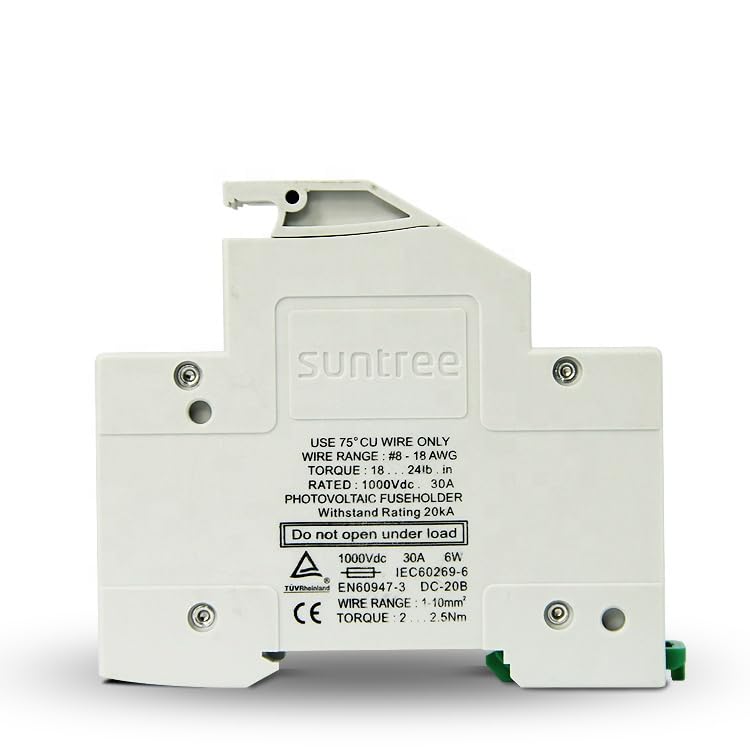

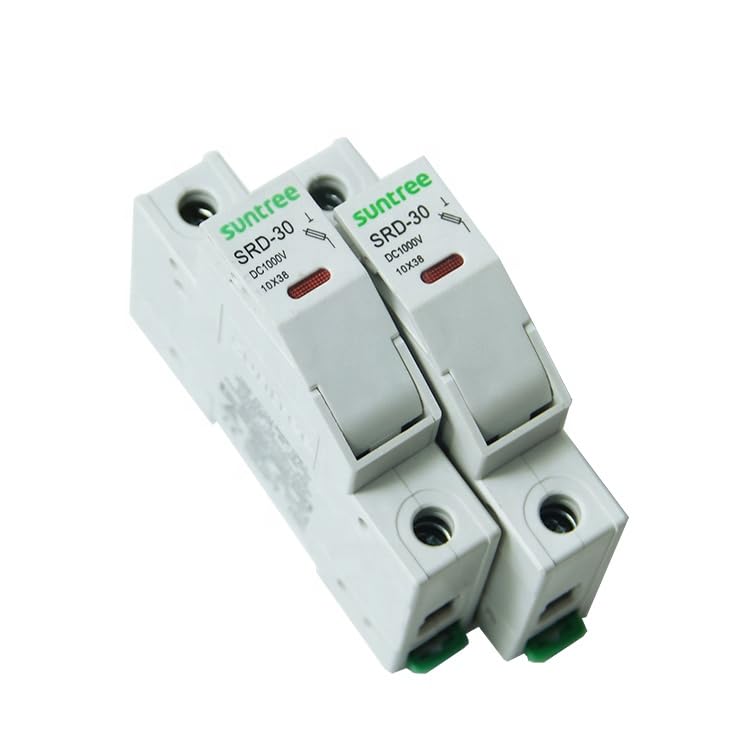

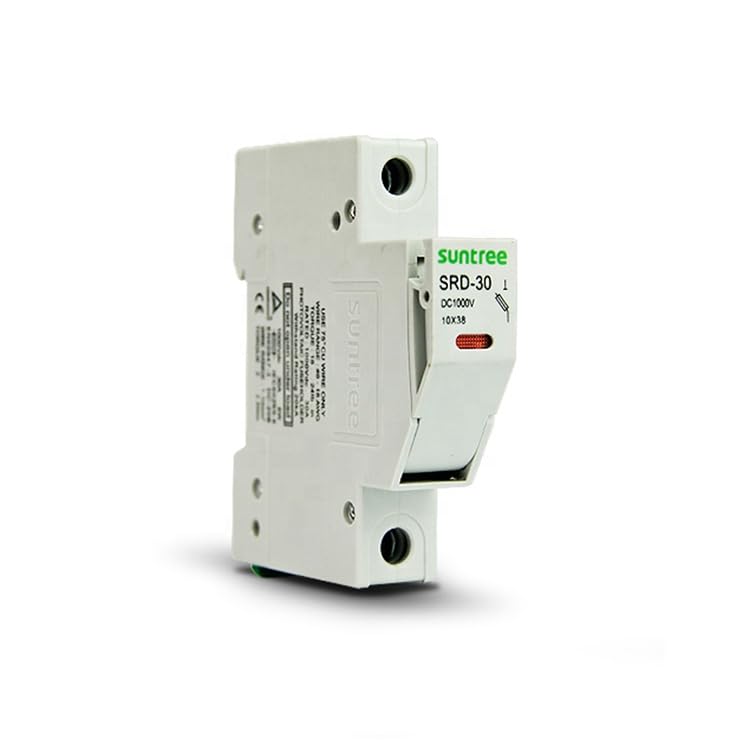

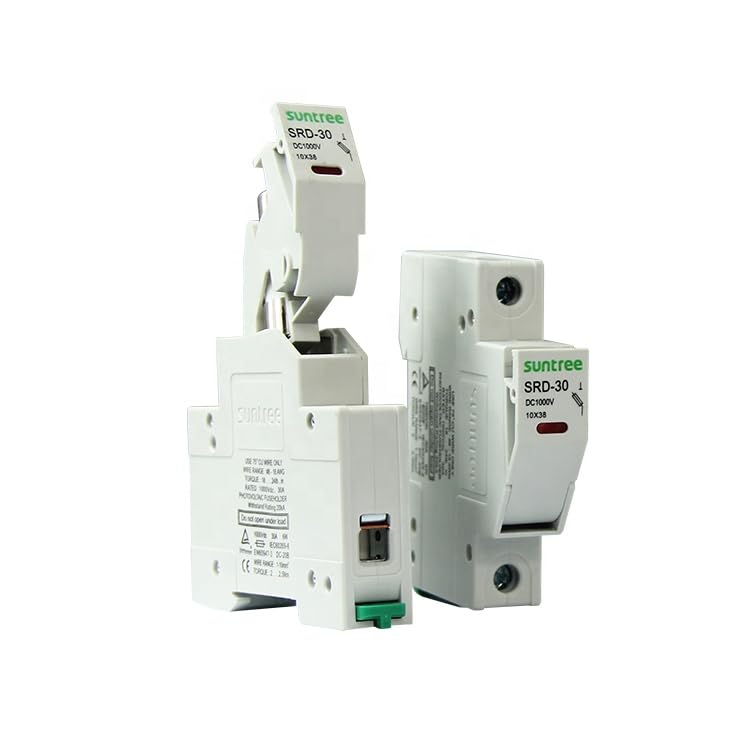

10PCS SRD-30 Thermal Fuse 20A 1000V 10X38 Fuse Switch Solar PV Disconnector

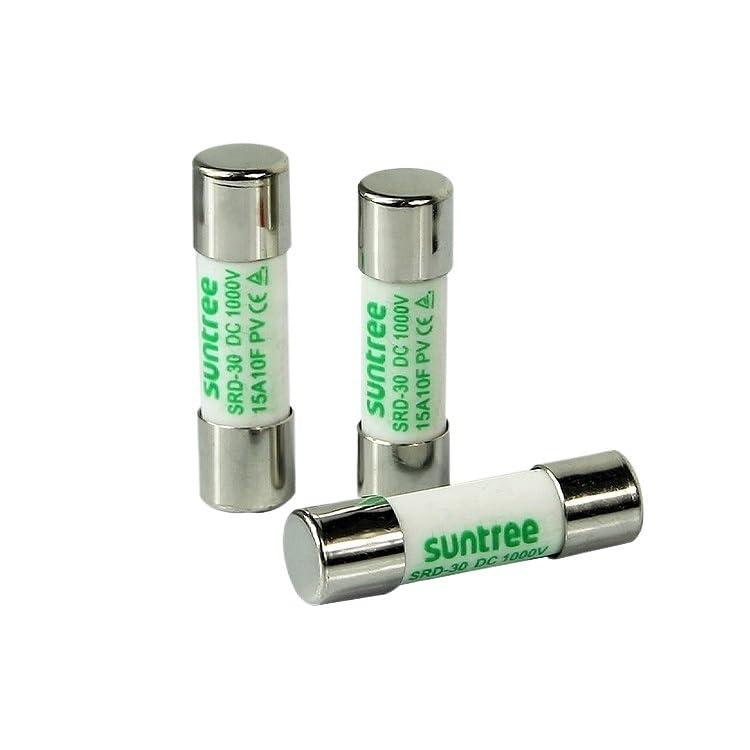

Product Description1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).2. Fuse mainly used in combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, fuse aslo used to protect other electrical parts in circuit, when overload or short circuit.TypeSRD-30Fuse size10 x 38MMPoles1PRated voltage 1000VRated current1,2,3,4,5,6,8,10,12,15,20,25,30AShort-circuit breaking capacity33KAMax power attenuation3.5WProtection gradeIP20Connection2.5-10mm2Operation ambient temperature-30~+70°CResistance and damp Class 2Elevation2000Installation wayTH35-7.5/DIN35 Rail installationRH(relative air humidity)when +20 °C,not exceed 95%;when +40 °C,not exceed 50%Pollution class3 Installation environmentthe place of no abvious vibrate & impactInstallation classWxHxLW18 x H89 x L90mmWeightkg007Performance1Photovoltaic system fuse with UL2481 standard2Photovoltaic battery fuse designed to used for photovoltaic (PV) system.3.Main effect is to protect the solar panels. Solar panels points in effective condition is broken,.4.Fault light cells break points at the same time, does not affect other normal work of light from the stack.5. Rated coltage:DC1000V6.Breaking capacity:25KA==========Model Number : SRD-30Use : protectBreaking Capacity : HighSafety Standards : IECType : FuseRated current : 30AReted voltage : 1000VPole : 1PCertificate : TUVProfessional manufacture : 8 YearsSize : 10*38mmStandard : IEC60269.6/TUVwhere use : PV system
