1 Pack Outdoor Photocell Light Sensor,Dusk to Dawn Photo Control Sensor,Auto on Off Hard-Wired Post Eye Light Control,Photoelectric Switch Sensor for Lighting Fixtures
Product details
| Management number | 250273357 | Release Date | 2026/09/17 | List Price | US$4.00 | Model Number | 250273357 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

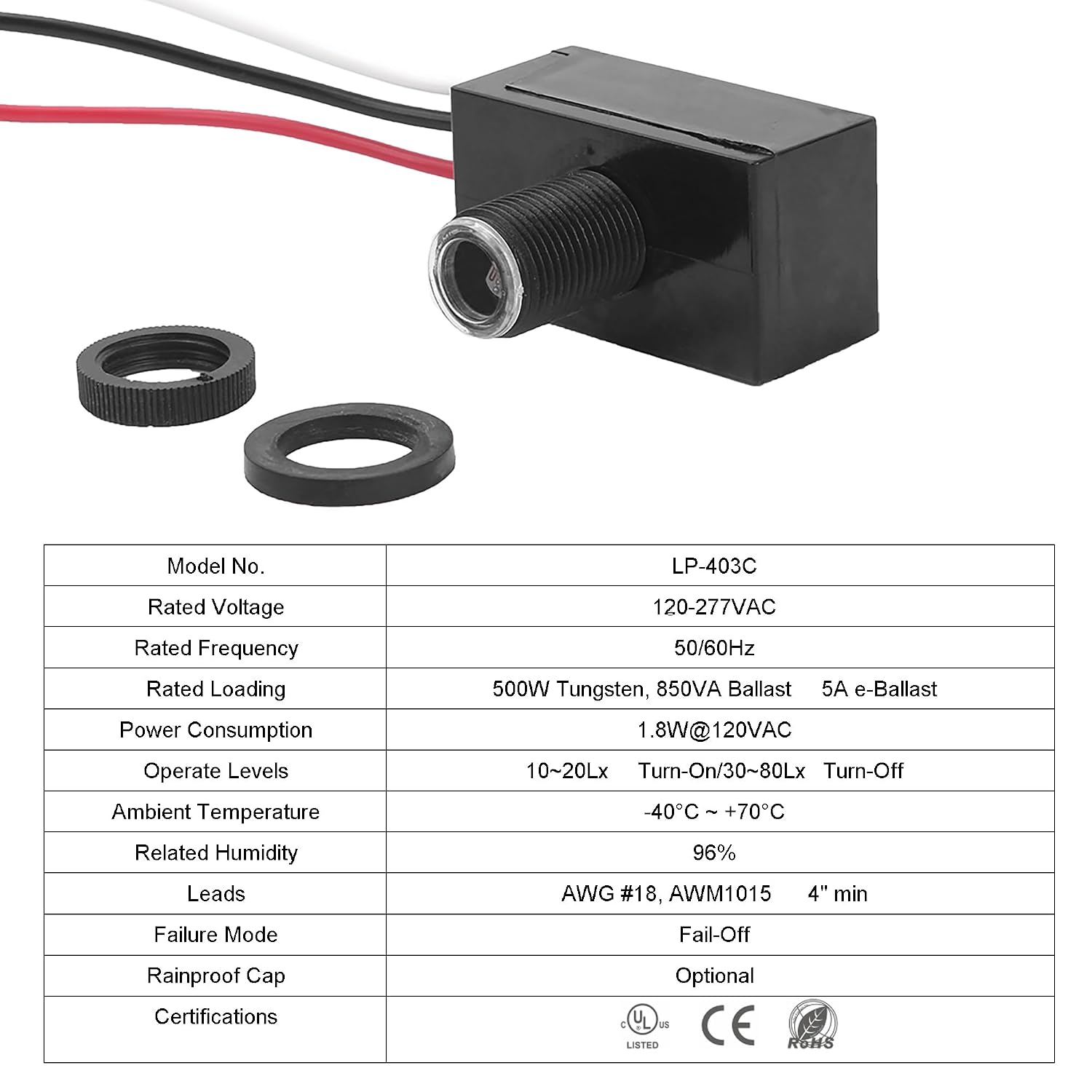

Specification: Rated Voltage: 120-277VACRated Frequency: 50/60HzRated Loading: 500W Tungsten, 850VA Ballast 5A e-BallastPower Consumption: 1.8W@120VACOperate Levels: 10-20Lx Turn-On/30-80Lx Turn-OffAmbient Temperature: -40°F ~ +158°FRelated Humidity: 96%Leads: AWG #18, AWM 1015 4"minFailure Mode: Fail-Off Installation Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night. Initial Testing It is normal for the SWITCH to take few minutes to turn off when first installed. To test "turn on" during daytime, cover its eye with opaque material. Do not cover with finger because light traveling through fingers may be great enough to keep the switch open. Test will take approximately 1 minutes. * Operation of this switch is not affected by weather, moisture or temperature changes.
- Smart Outdoor Photocell Sensor -- Automatically turns light on at dusk and off at dawn. 3-10 Seconds time-delay can avoid false on/off triggers due to spotlight or lightning.
- Weather-proof -- The dusk to dawn sensor can work with most fixtures and bulbs for hard-wire outdoor lamp posts, such as LED, incandescent, halogen and fluorescent bulb. This photoelectric switch is made of high quality material, corrosion preventive and anti-dust, perfect for outdoor lighting.
- Wide Application -- The post eye light control sensor is suitable for parking lot, street lighting, passage lighting, doorway lighting, outdoor lighting, factory, indoor lighting, barn lights, pedestrian pathway and landscape lighting.
- Easy to Install -- Disconnect power, remove junction box cover, place the photocell light switch in knockout hole and fasten with lock nut. Do not install the switch with the photocell facing artificial or reflected light, which will cause the sensor to cycle on and off at night.
- UL Certified -- Our photocell light sensor switch has been listed by UL, CE and RoHS, make sure your safety. We could provide mass customization service for whatever models you want. If you have any question, please feel free to contact us.
| ASIN | B083FCB8CQ |
|---|---|
| Color | Black |
| Model | LP-403C-1P |
| Wattage | 500 watts |
| Terminal | Screw |
| Brand Name | GBAYSA |
| Unit Count | 1 Count |
| Item Weight | 1.8 ounces |
| Part Number | LP-403C |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | automatic |
| Manufacturer | LIPU LIGHTING |
| Actuator Type | Push Button |
| Material Type | Plastic |
| Mounting Type | Direct wire-in |
| Connector Type | Screw Terminals |
| Control Method | Sensor |
| Item Type Name | Photocell |
| Operation Mode | automatic |
| Item Dimensions | 2.1 x 1.1 x 1.7 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 120 volts_of_alternating_current |
| Compatible Devices | Outdoor Light,Street Light,Barn Light |
| Included Components | Photocell |
| Number of Positions | 1 |
| Warranty Description | 1 year |
| Upper Temperature Rating | 150 °F |
| International Protection Rating | IP65 |
